N42 Super Strong Neodymium countersunk magnets NdFeB rectangular/block magnets with counter holes

Name: N42 Super Strong Neodymium countersunk magnets NdFeB rectangularblock magnets with counter holes
Brand: YYMAG
Price: 0.02 USD

N42 Super Strong Neodymium countersunk magnets NdFeB rectangular/block magnets with counter holes Manufactures

Brand Name : YYMAG

Model Number : N42

Certification : ISO,SGS,REACH

Place of Origin : ZHEJIANG PROVINCE,CHINA

MOQ : 100pcs

Price : US$0.02-US$3 Per Piece

Payment Terms : T/T, Western Union, MoneyGram,Paypal

Supply Ability : 1000000 per month

Delivery Time : 25days

Packaging Details : Standard Exporting Packing, Magnets+ Small Carton+ Green Foam + Big Carton, Carton Size: 33x24x15cm

Materials : NdFeB Magnet

Grade : N35-N52(M,H,SH,UH,EH)

Working Temperature : 80-200 Degree Centigrade

Magnetization Direction : Axial,Diametrical,Thickness,Width

Tolerance : +/-0.05mm

Coating : Nickle,Epoxy,Silver,Gold

Shape : Block magnet with hole

Size : can be customized

Contact Now

Neodymium (NdFeB) Sintered neodymium magnet

N42 Super Strong Neodymium countersunk magnets NdFeB rectangular/block magnets with counter holes


Neodymium magnet Performance Grade---N35-N52,M,H,SH,UH,EH,AH
 Neodymium Magnet Dimensions & Shape---Accept customized

 Block:D1*1*1mm –240*240*30mm
 Disc:D1*1mm—D250*40mm

Coating---Zinc, Ni-Cu-Ni, Epoxy, Rubber, Gold, Sliver, and so on
 Tolerance---Routine ±0.1mm and strict ±0.05mm

Applications

Audio equipment: headphones, microphone, speaker.
Instruments: electric meter, speed meter, flowmeter, tachometer.
Medical equipment: MRI, magnetic water devices and magnetic water treatment device, magnetic device.
Motor: voice coil motor(VCM), step motor, textile synchronous motor, geared motor, disc motors, servo motors, permanent magnet moving coil device.
Industrial electric drive and control: magnetic clamp, magnetic crane, magnetic filter, CD_ROM, oil degreasing equipment, magnetic coupling, magnetic switch.

Note:The neodymium magnets extremely stronger.
 They must be handled with care to avoid personal injury or damage to the magnets.

We are factory that specialize in Neodymium magnet more than 15years, we pay more attention to integrity and focus on the needs of our customer. We have good cooperation with China No 1 Rare Earth Mineral, we believe we can give you the best cost support of all Neodymium Magnet.



Product Name	N42 Super Strong Neodymium countersunk magnets NdFeB rectangular/block magnets with counter holes
Material	Permanent Neodymium Magnet
Color	Gold,Bright Silver,black epoxy
Shape	Block
Density	7.3--7.4G/CM3
Grade	N35-N52- NSH/customized
MOQ	100 PCS
Sample	Free
Packing	Magnets+ Small Carton+ Green Foam + Big Carton
Delivery Time	Shipped in 10 days after payment
Used	Micromotor,generater,speaker,sensor

N42 Super Strong Neodymium countersunk magnets NdFeB rectangular/block magnets with counter holes


Application

Demands of the NdFeB magnets have been growing rapidly in the global market such as information technologies , Motors, Medical equipments and so on. YYMAG magnets are widely used in the following areas: Office Automation - Personal computers, Copiers, Printer Electricalenergy - Flywheels, Wind power station Science and Research - ESR(electron spin resonance), Magnetic levitation, Photon generation Medicine - Dental materials, Imaging Industry - Industrial robots, FA(factory automation), - Televisions, DVD(digital video disc). Transportation - Small motors, Sensors, Automobiles, EV(electric vehicles, hybrid cars) Telecommunications - Mobiles communications, PHS(personal handy-phone system) Health care: MRI, medical treatment equipment. Daily Use -- Magnetic tool holder, magnet clasp for bag and jewelry, Toys application

Coating

Ni-Cu-Ni, Zn, Epoxy, Parylene, etc.


Magnetic Direction

Packing and Shipping

Standard export package for air and sea shipping.
 usually inner carton -→ outer box (single layer and double layer) -→ pallet and can be packaged per your requests.
 +By Air: all the magnetic should be degaussed and we will use Iron sheet to shield.
 +By Sea: we will place a pallet on the bottom of cartons.

Express (TNT, DHL, FedEx, UPS, etc), Air, Ocean.
a: The weight is under 40Kgs, we recommend to send them in shielding boxes to you by Express.
b: The weight is between 40Kgs-100Kgs, it can be sent by Express or Air.
c: The weight is over 100Kgs, we recommend to send them by Ocean.

About Us

Product Tags:

Company name	Hangzhou YangYi magnetics Co., Ltd
Year of establishment	2007
Location	Hangzhou City, Zhejiang Province, P.R. China

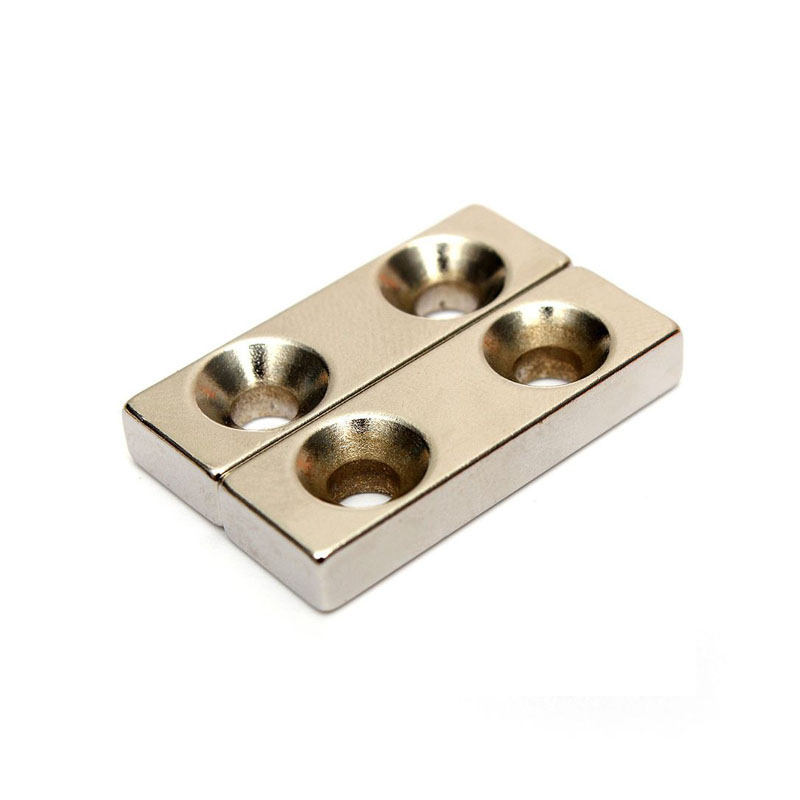

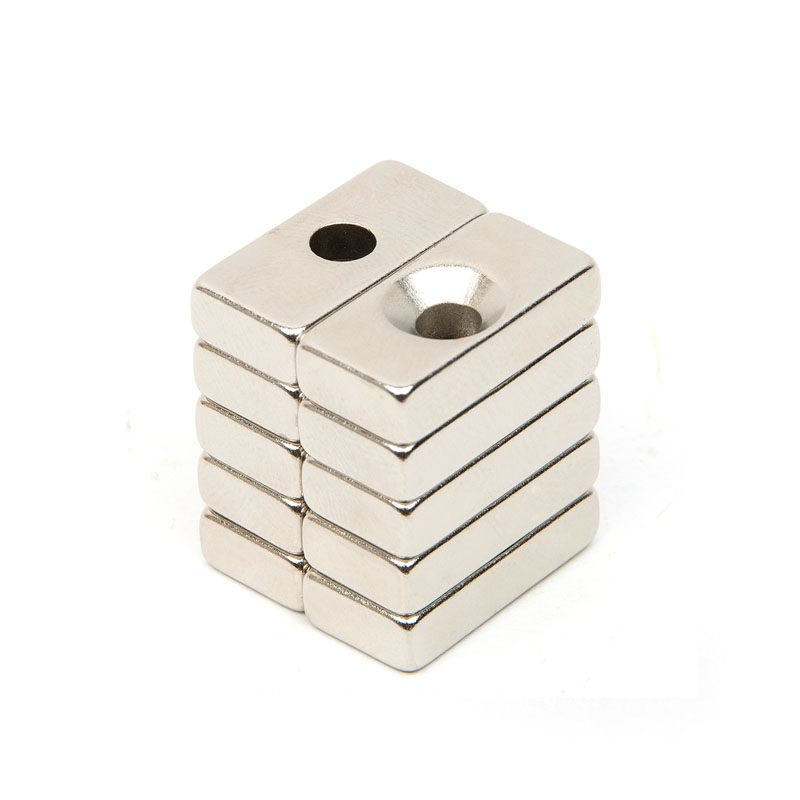

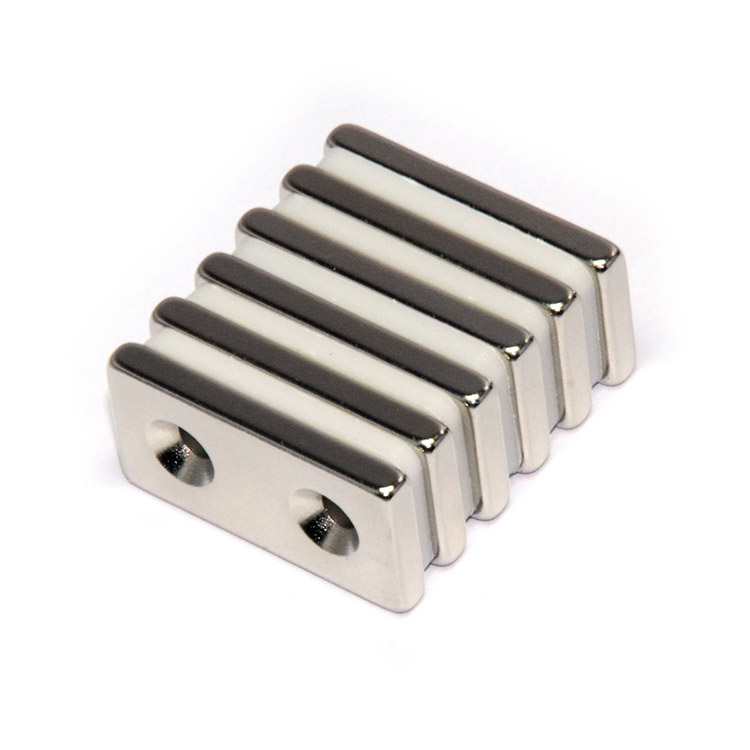

N42 Super Strong Neodymium countersunk magnets NdFeB rectangular/block magnets with counter holes Images
